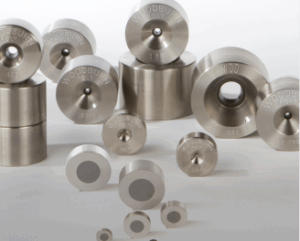

Polycrystalline Diamond Dies

The “industry workhorse” is the signature of the polycrystalline diamond die, where standing up to demanding wear is a necessity. This material has highly predictable die wear, thermal stability with high resistance to fracturing. All these characteristics offer cost efficiency with less downtime. Woodburn Diamond Die’s uncompromising quality assurance methods provide trouble-free performance from installation to recutting.

Polycrystalline diamond is manufactured by forming a mass of diamond crystals and then applying a combination of heat and pressure. Through this process, the mass becomes a single unit with the diamond particles inter-grown to each other. The final product is extremely wear resistant, maintains tight hole tolerances, and provides good surface finish. Consider Woodburn’s polycrystalline diamond, where high polish is included as part of the standard process, when drawing ferrous or nonferrous wire, including aluminum, copper and stainless steel. It’s also the perfect material for stranding, bunching, tube drawing and shaped dies.

Polycrystalline diamond is available in various grades, nib sizes and size capabilities. Woodburn Diamond Die’s technical advisors will help select the appropriate nib size and grain structure for your application.

Polycrystalline Diamonds (.0030 – 1.140”) (0.0762 – 29.00 mm)

For more information on our polycrystalline offerings, please click here to contact us.

ADDMA Nib#Required Hole
Size Range
Max. Hole Size Grades
Available
HardwireSoftwire
D6 IN: .004 - .020
MM: .1016 - .5080
.016
.4064
.0226
.5740
U, F
D12IN: .006 - .025
MM: .1524 - .6350
.0257
.6528
.041
1.041
U, F, C
D15IN: .020 - .045
MM: .5080 - 1.143
.046
1.168
.062
1.575
U, F, C
D18 IN: .036 - .080
MM: .9144 - 2.032
.061
1.549
.094
2.388
U, F, C
D21IN: .070 - .125
MM: 1.778 - 3.17
.083
2.108
134
3.404
U, F, C
D24 IN: .100 - .165
MM: 2.540 - 4.191
.126
3.200
.187
4.749
U, F, C
D27 IN: .150 - .244
MM: 3.810 - 6.198
.193
4.902
.267
6.782
U, F, C
D30IN: .200 - .364
MM: 5.080 - 9.246
.332
8.433
.364
9.246
U, F, C
D33 IN: .315 - .425
MM: 8.001- 10.795
.346
8.788
.428
10.871
F, C
U - Ultra Fine, F - Fine, C - Coarse
Micron Size* Grade Stamping
0 - 4 UltraU
5 - 12FineF
20 & LargerCoarseC
* Material provided by:
-- DeBeers Industrial Diamond Division - Syndie
-- General Electric Company, USA - Compax
-- Sumitomo Electric Industries Ltd. - Sumidia®
Size RangeTotal
Tolerance
Ovality
Tolerance
Casing
Dimensions
IN: .004 - .010
MM: .1016 - .2540
IN: .00005
MM: .00127
IN: .00003
MM: .00076
IN: 1.0 or 1.125x.312
MM: 25 or 28x8
IN: .0101 - .020
MM: .2541 - .5080
IN: .000075
MM: .0019
IN: .00004
MM: .00102
IN: 1.0 or 1.125x.312
MM: .25 or 28x8
IN: .0201 - .040
MM: .5081 - 1.016
IN: .0001
MM: .00254
IN: .00006
MM: .0015
IN: 1.0 or 1.125x.375
MM: 25 or 28x10
IN: .0401 - .060
MM: 1.0161 - 1.524
IN: .000125
MM: .00318
IN: .00008
MM: .0020
IN: 1.0 or 1.125x.375
MM: 25 or 28x10
IN: .0601 - .090
MM: 1.5241 - 2.286
IN: .000150
MM: .0038
IN: .0001
MM: .00254
IN: 1.0 or 1.125x.500
MM: 25 or 28x12
IN: .0901 - .120
MM: 2.2861 - 3.048
IN: .000175
MM: .00445
IN: .000125
MM: .00318
IN: 1.0 or 1.125x.625
MM: 25 or 28x15
IN: .1201 - .240
MM: 3.0481 - 6.096
IN: .0002
MM: .0051
IN: .00015
MM: .0038
IN: 1.5x.875
MM: 43x27
IN: .2401 - .360
MM: 6.0961 - 9.144
IN: .00025
MM: .0063
IN: .000175
MM: .00445
IN: 1.5x.875
MM: 43x27
IN: .3601 & Larger
MM: 9.1441 & Larger
IN: .0003
MM: .0076
IN: .0002
MM: .0051
IN: 1.5x.875
MM: 43x27
1 - Standard Reduction Angles are 10° through 23° in 2° increments (Ex: 14 - 16°)

2 - Standard Bearing Length range is 10% through 70% of hole diameter in 20% increments (Ex: 20 - 40%)

3 - Elongation Dies and Sets are available with + or -1/2 percent standard elongation tolerance.

4 - Special configurations, tolerances and casing dimensions are available upon request.
